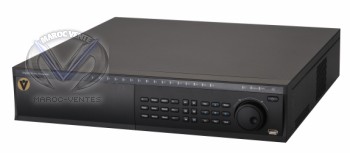

Visio KD-D1614D - Standalone DVR H.264 DVRs Full D1 2U
FICHE TECHNIQUE
D1(4CIF) CIF QCIF 704 X 480 352 X 240 176 X 120 704 X 576 352 X 288 176 X 144 Dual encoding streams supported; Sensitivity: 1~6 (level 6 is highest) Trigger recording, PTZ movement, tour, alarm, email, matrix output Trigger recording, PTZ movement, tour, alarm, email, matrix output
Description du produit
Model
KD-D1614D
System
Main Processor
High performance embedded microprocessor
Operating System
Embedded LINUX
System Resources
Pentaplex function: live, recording, playback, backup & remote access
User Interface
GUI, on-screen menu tips
Control Device
Front panel, USB mouse, keyboard, IR remote control, network keyboard
Input Method
Numeral/Character/Denotation
System Status
HDD status, data stream statistics, log record, bios version, on-line user etc.
Video
Video Input
4/8/16 channel, BNC, 1.0Vp-p, 75omh, looping
Video Output
1 channel TV output, BNC, 1.0Vp- p, 75omh, 1 VGA output, 1 HDMI output
Video Standards
PAL(625Line, 50f/s), NTSC(525Line, 60f/s)
Video Compression
H.264
Video Resolution
Format
NTSC
PAL
Video Recording
4CIF/CIF/QCIF: PAL 1f/s-25f/s NTSC 1f/s-30f/s;
Video Display Split
Full and multiple screen display, 1 / 4 / 9 / 16
Tour Display
Support
Image Quality
1~6 level(level 6 is the best)
Privacy Masking
4 self-defined four-sided zones for privacy masking for each camera
Camera Lock
Camera locked for users
Camera Adjustment
Adjust color according to different time period
Video Information
Camera title, time, video loss, camera lock, motion detection, recording
TV Output Adjustment
Adjust TV output color & display zone
Audio
Audio Input
4/8/16 channel, BNC, 200-2800mV, 30KO
Bidirectional Talk Input
1 channel, BNC, 200-2800mV, 30KO
Audio Output
1 channel, BNC, 200-3000mv, 5KO
Audio Compression
G.711
Video Detection & Alarm
Motion Detection
Zones: 396 (22*18) detection zones
Video Loss
Trigger recording, PTZ movement, tour, alarm, email, matrix output
Camera Blank
Trigger recording, PTZ movement, tour, alarm, email, matrix output
Alarm Input
16/16/16 channel, programmable, ground, manual open/closed
Relay output
6/6/6 channel, 30VDC, 1A, NO/NC, form-C
Hard Disk
Hard Disk
8 SATA ports, 8 HDDs supported, eSATA port
Space Occupation
Audio: 14.4MB/H Video: 56~500MB/H
HDD Management
Hard disk hibernation technology, HDD faulty alarm & Raid(Redundancy)
Record, Playback & Backup
Recording Mode
Manual, continuous, video detection (including motion detection, camera blank, video loss), Alarm
Recording Priority
Manual •Alarm •Video Detection •Continuous
Recording Interval
1 to 120 minutes (default: 60 minutes), Pre-record up to 30 seconds, Post-record up to 5 minutes
Overwrite Mode
Support
Search Mode
Time/Date, Alarm, Motion Detection & exact search (accurate to second)
Playback
16 channel playback simultaneously, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection
Digital Zoom
Selected zone can zoom into full screen during playback
Backup Mode
Flash disk/ USB HDD/ USB CD/DVD-RW/ built-in SATA burner/ Network download
Network
Interface
RJ-45 Port (10/100M)
Network Functions
TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server
Remote operation
Monitor, PTZ control, playback, system setting, file download, log information
Auxiliary Interface
USB Interface
2 ports, 1 for mouse control, 1 for backup
RS232
keyboard, PC communication
RS485
PTZ control
Environmental
Power Supply
220V 50Hz / 110V 60Hz
Power consumption
25W/30W/40W
Working Temperature
-10°C~+55°C
Working Humidity
10%~90%
Atmosphere Pressure
86kpa~106kpa
Dimension
1.5U, 440mmx460mmx89mm (W*D*H)
Weight
6.5KG(without HDD)
Mounting
Desktop or rack
-
