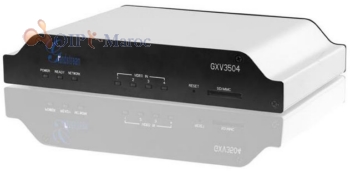

Grandstream GXV3504 - IP 4 ports BNC Video Encoder H.264

Chargement...

-8%

GXV350x IP Video Encoder Support GXV3504

La série GXV3504 offre une excellente solution pour la propriété intellectuelle permettant de caméras analogiques traditionnels de surveillance pour les environnements professionnels. Un IP de nouvelle génération de serveurs vidéo / encodeur avec des inno

Ce produit n'est plus proposé à la vente

Disponibilité : Obsolète (Fin de vie)

Evaluation :

Evaluer ce produit.

Description
Avis des clients

FICHE TECHNIQUE

Description du produit
Advanced multi-streaming-rate real-time H.264, Motion JPEG at D1 resolution 1 or 4 analog inputs (BNC) and 1 or 4 alarm input & outputs Audio input and output, RS485/232, PTZ Control 24MB pre/post-event recording buffer per port USB 2.0 port and SD card slot for storage / wireless network card Integrated Power-over-Ethernet (802.3af), optional antenna for wireless network connectivity Embedded video analytics including motion (up to 16 target areas) & video loss detection SIP/VoIP support for two-way audio communications and video streaming to mobile phones and video phones Built-in high performance streaming server to allow up to 12 simultaneous D1 viewers or 25 CIF viewers
Caractéristiques du produit
Channels	4
Video Compression	H.264 BP @ Level 3.0, JPEG, Motion JPEG
Max Video Resolution	Full D1: 720 x 576 (PAL), 720 x 480 (NTSC)
Max Frame Rate in Max Video Resolution	75fps/62.5fps at D1 (NTSC/PAL): 4 ports at CIF at full rate, or 2 ports at D1 & 2 Ports at CIF at full rate, or 4 ports at D1 at reduced rate
Video Bit Rate	32 Kbps -2 Mbps
Video Input	4 (BNC, voltage 1.0Vp-p, resistance 75°
Audio Input	4 (BNC), 3.5mm Line-In
Audio Output	3.5mm Line-Out
Audio Compression	G.711, G.726
Alarm Input	4
Alarm Output	4 (125VAC/0.5A, 30VAC/2A)
PTZ Control	Yes
Serial Ports	RS485 / RS232
Embedded Analytics	Motion Detection (up to 16 target areas), video loss (pending)
Pre-/post alarm buffer	24MB (per channel)
Snapshots	trigger upon events, send via email/FTP
Multi-streaming-rate for Preview and Recording	Yes
Security	Video watermark, HTTPS, password
Power over Ethernet (PoE)	Standard, IEEE 802.3af Class 3
Peripheral Ports	SD 2.0, USB Host 2.0
Wi-Fi (802.11b/g)	Yes
SIP/VoIP Support	Yes
Dimensions (L x W x H)	9 in x 6 in x 1.5 in
Weight	2.25 lbs
Temperature/Humidity	10°C - +55°C (14°F - 131°F) Humidity 10-90% RH (non-condensing)
Power	Output: 12VDC/1.0A; Input: 100-240VAC, 50-60Hz
Compliance	FCC Part 15, Subpart B Class B; EN55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 60950-1; C-tick AS/NZS CISPR 22, CISPR 24
