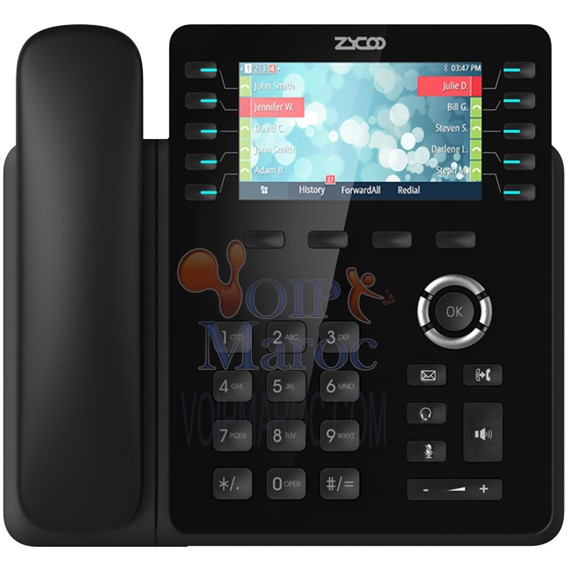

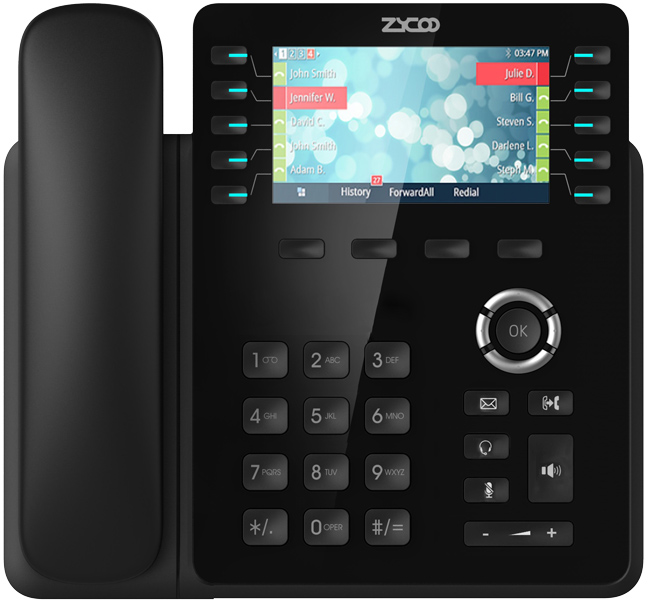

Zycoo CooFone-D90 - Telephone IP Ecran Rétro-Eclairé 6 Lignes de SIP PoE

Chargement...Chargement...
-48%
Telephone IP Ecran Rétro-Eclairé 6 Lignes de SIP PoE CooFone-D90
Ports RJ-45 LAN Port 10 / 100BASE-T pour PC 6 lignes SIP VoIP, Journal des appels, Annuaire, Ecran couleur rétro-éclairé, 2 ports LAN 10/100

Ce produit n'est plus proposé à la vente
Disponibilité : Obsolète (Fin de vie)
Evaluation :
  • Telephone IP Ecran Rétro-Eclairé 6 Lignes de SIP PoE CooFone-D90
Couleurs
Fiche Technique

Description du Produit


The Coofone D90 IP Phone is an industrial masterpiece, offering superior user experience and simplicity for home and office users with elegant appearance and intelligent software.
Main Features

 Call out / answer / reject
 Mute / Unmute (microphone)
 Call Hold / Resume
 Call Waiting
 Intercom
 Caller ID Display
 Call Forwarding (Always/Busy/No Answer)
 Call Transfer (Attended/Unattended)


 Call Parking/Pick-up (depending on server)
 Redial
 Do-Not-Disturb (per line / per phone)
 Auto-Answering (per line)
 Voice Message (on server)
 Local 3-way Conference
 Hot Line

Specifications

Generic

 6 SIP Lines
 HD Voice
 User Friendly Graphical Menu with Help description
 POE Enabled
 Handset (HS) / Hands-free (HF) / Headphone (HP) mode
 Desktop / Wall-mount installation
 External Power Supply
 Economical and Environmental friendly package
 Industrial Standard Certifications: CE/FCC

Call Features

 Call out / answer / reject
 Mute / Unmute (microphone)
 Call Hold / Resume
 Call Waiting
 Intercom
 Caller ID Display
 Call Forwarding (Always/Busy/No Answer)
 Call Transfer (Attended/Unattended)
 Call Parking/Pick-up (depending on server)
 Redial
 Do-Not-Disturb (per line / per phone)
 Auto-Answering (per line)
 Voice Message (on server)
 Local 3-way Conference
 Hot Line

Phone Features

 Initialization Configuration Wizard
 Up to 5 User Accounts / Profiles with individual phonebook/call log/configurations/PIN
 Phone Accessibility Control by User PIN
 Intelligent Phonebook (up to 500 entries total)
 Cloud Phonebook (XML)
 Intelligent Contact Number Matching / Filtering
 Call log (300 entries total, in/out/missed)
 Call Connection Quality (QoS) Measurement and Indication
 Voice Message Waiting Indication (VMWI)
 Network Time Synchronization

Audio

 HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
 Wideband ADC/DAC 16KHz Sampling
 Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
 Wideband CODEC: G.722
 Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
 Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
 Packet Loss Concealment (PLC)
 Dynamic Adaptive Jitter Buffer up to 300ms
 DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO Networking
 Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass
 IP Configuration: Static / DHCP / PPPoE
 Network Access Control: 802.1x
 VPN: L2TP (Basic Unencrypted) / OpenVPN
 VLAN
 QoS

Protocols

 SIP2.0 over UDP/TCP/TLS
 RTP/RTCP/SRTP
 STUN
 DHCP
 PPPoE
 802.1x
 L2TP (Basic Unencrypted)
 OpenVPN
 SNTP
 FTP/TFTP
 HTTP/HTTPS
 TR069

RFCs:
354/1321/1350/1769/1889/1890/2131/2132/2616/ 2617/2661/2833/2976/3261/3262/3263/3264/3265/ 3268/3311/3489/3711/4346/4566/5630/5865

Deployment & Maintenance
 Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
 Web Management Portal
 Web-based Packet Dump
 Configuration Backup/Restore
 Auto/Manual Online Software Upgrade
 Syslog

Physical Specifications

 LCD x1: 128x48 dot-matrix with backlit
 Keypad: 25 keys, including
      4 Soft-keys
      12 Standard Phone Digits keys
      2 Navigation keys (Up/Down)
      8 Line keys with tri-color LED
      1 Redial / Call Log Key
      3 Volume Control keys, Up/Down/Mute(Microphone)
      1 Hands-free / Headphone key
 HD Hands-free Speaker (0 ~ 7KHz) x1
 HD Hands-free Microphone (0 ~ 7KHz) x1
 HD Handset (RJ9) x1
 Standard RJ9 Handset Wire x1
 1.5M CAT5 Ethernet Cable x1
 RJ9 Phone Jacket x2: Handset x1, Headphone x1
 RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 1 Enabled, X3P only), PC x1 (Bridged to Network)
 Main Chipset: Broadcom
 DC Power Input: 5V/1A
 Power Consumption: Idle – ~ 1.1W, Peak – ~ 1.8W
 Working Temperature: 0 ~ 40℃
 Working Humidity: 10 ~ 65%
 Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
 Color: Black (K) / White (W) / Red (R) / Blue (B) / Yellow (Y)
 Package Dimensions: 275x215x62mm(W x H x L)

Nbr, de lignes6
Ports Ethernet2
PoEOui
ProtocoleSIP
Touches programmables0
BLF (DSS)Non
Module d'extensionNon
Interface CasqueRJ9
EcranLCD
Ecran rétroéclairéOui
Répertoire n°500
Support MWIOui
WiFiNon
BluetoothNon
Provisioning MethodHTTP, WEB GUI
Garanti1 ans
