Accueil » D-LINK 48 PORT CAT6-2U PATCH PANEL NPP-C61BLK481 Fully Loaded
D-Link

D-Link NPP-C61BLK481 - D-LINK 48 PORT CAT6-2U PATCH PANEL NPP-C61BLK481 Fully Loaded

Chargement...Chargement...
-24%
D-LINK 48 PORT CAT6-2U PATCH PANEL NPP-C61BLK481 Fully Loaded NPP-C61BLK481

Prix Normal : 790,00 Dh HT

Votre Prix :602,00 Dh HT

722,40 Dh TTC

Economie : 188,00 Dh - 24%

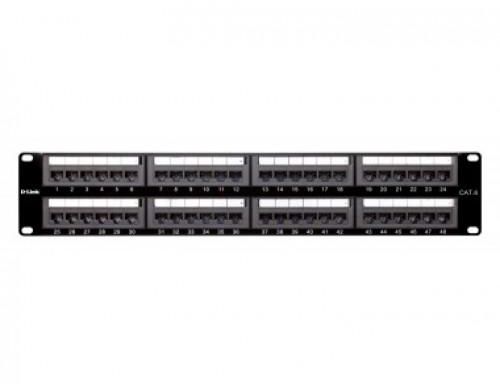

D-Link 48 Port Cat6 UTP Fully Loaded Punch Down Patch Panel - Keystone Type - 2U - Black Colour

Disponibilité : Nous consulter sur mv.ma
Evaluation :
  • D-LINK 48 PORT CAT6-2U PATCH PANEL NPP-C61BLK481 Fully Loaded NPP-C61BLK481

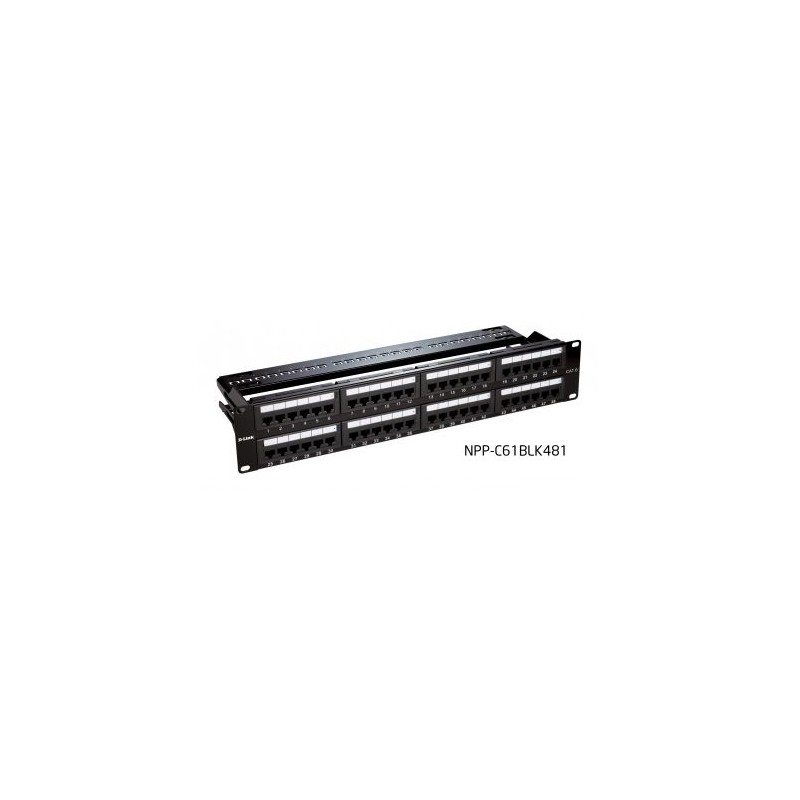

  • /images/Products/d-linked_24cf2ad0-6a47-481b-9b64-3802ff6c1b8a.jpg
Description
Patch Panel Cat 6 UTP Keystone Type- 48 Port-Fully Loaded
Category
Cat6
Loaded/Unloaded/Fully Loaded
Fully Loaded
Port
48 port
Unshielded/Shilded
Unshielded
Features
Hand screw, easy to open cover
Eight port RJ45 modules applied
Jack shutter to keep dust away
Friendly installation, right angle between
IDCs and RJ45 keystone jacks
ID stripes for identifying port allocations
IDC compatible with 110&Krone tool
Mounts in standard 19” racks
RoHS/UL certified
Specification
Panel: SECC, 1.2mm thickness with optional color painted
Identification:
ID plate: PVC, Transparent color with paper
ID Bracket: ABS+PC, UL 94V-0
RJ45 Jack:
Housing: PBT+ Glass Fiber, UL94V-0
Contact Bracket: PBT+ Glass Fiber, UL94V-0
RJ45 Jack Contact:
Material: Phosphor Bronze with Nickel plated
Finish: 50 micro-inches Gold plated on plug contact area
RJ45 Jack Shield: Bronze with Nickel plated
Dust cover: PC, UL94V-2
IDC:
Housing: PC+ Glass Fiber, UL 94V-2
Terminal: phosphor Bronze with Tin Plated
Ground wire: 18 AWG wire, with Green/Yellow striped color
PCB: FR4, UL 94V-0
Performance
T568A & T568B wiring scheme on PCB
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operating temperature: -10›C to 60›C
( ISO/IEC 11801, ANSI/TIA/EIA 568B.2)
Life ( mating cycles):
a. Jack: 750 cycle’s min (ISO/IEC 11801, IEC 60603-7-5)
b. IDC: suitable for 22-26 AWG stranded and solid wire,
compatible with both 110& Krone punch down tools
The Cat6 transmission performance is in compliance
with the ANSI/TIA/EIA 568B.2 -1 standard
