Model Number

SE-NR8209Q

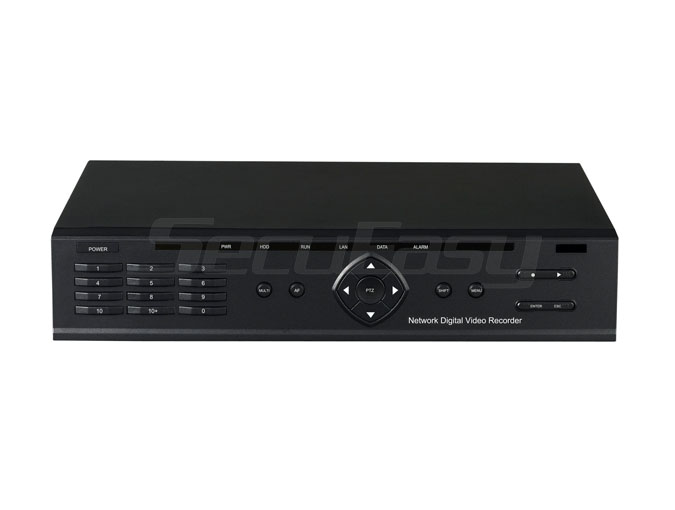

SE-NR8216Q

Operating System

Embedded LINUX operating system

Image Code Control

Image code quality adjustable, variable bitstream and constant bitstream optional

Dual Stream

Each channel can set main stream and sub stream

Video Standard

1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps

Monitoring Image Quality

1080P(1920×1080) / 960P/(1280×960)/720P(1280×720)

Image Motion Detection

Each screen can set mutiple detection areas and set 6-level sensitivity

Recording Playback Quality

Any 4ch 1080P/720P playback simultaneously

Region Cover

Every channel can set 4 cover regions

Recording Mode

Support manual , auto, dynamic detection, alarm trigger record mode

Backup Way

Support U disk, USB mobile HDD, USB DVD-RW. network storage and backup

Operation Way

Mouse, remote control, front panel, keyboard controller

Local Login

User name and password

Recording Storage

Local HDD, network

External Ports

Video Input

①9×(1920*1080) IP camera
② 4×(2048*1536) 3 mega IP camera

①16×(1280*960) /(1280×720)IP camera
② 16×(1920*1080) IP camera
ƒ4×(2048*1536) 3 mega IP camera

Audio Input

9 ch network audio input

16 ch network audio input

Video Output

1ch VGA+1ch HDMI

Audio Output

1ch BNC auxiliary output

Network Port

1 RJ45,10M/100M/1000Mself-adaptive LAN port

RS485 Port

Full duplex standard 485 port, support 19 kinds of PTZ protocols

USB Port

2 USB 2.0 ports

Alarm Input

4ch

4ch

Alarm Output

1ch

2ch

Wireless Port

3G，WIFI

HDD

HDD Port

2 SATA HDD port

MAX Capacity

Each port supports MAX 4TB HDD

Mobile Surveillance

Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone

Power Supply

12V4A

Power Consumption

≤25（without HDD）

Working Temperature

-10℃～＋55℃

Working Humidity

10％-90％

Dimension

Equipment:350mm×240mm×70mm， Packing:409mm×365mm×129mm

Weight(without HDD)

N.W.:1.7Kg；with packing:2.89Kg

Outside Carton

5pcs/carton.675mm×425mm×385mm；weight:15.22 Kg.

Installation Way

Desktop installation
